Specifications
[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]| Rim | |
| Wheel Size | 29″ |
| Tire Compatibility | Tubeless |

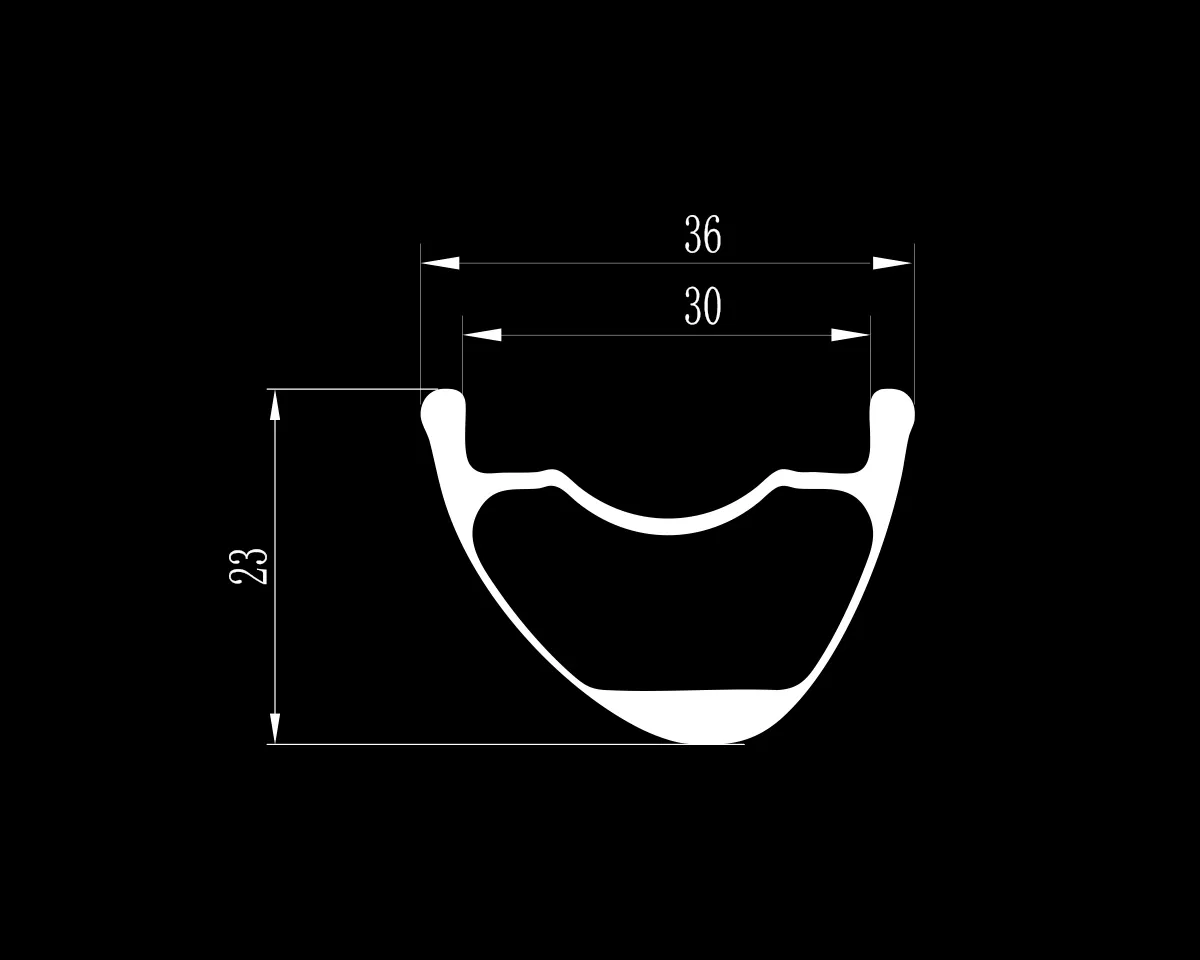

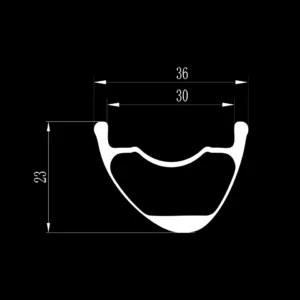

| Rim Depth | 23mm |
| Inner Width | 30mm |
| Outer Width | 36mm |
| Rim Profile | Asymmetric |
| Offset | 3mm |
| Bead Type | Hookless |
| Rim Finish | UD Glossy Black |
| Other | |
| Max Tire Pressure | 60psi/4.14bar |
| Extras | Rim Tape(Installed), Tubeless Valves(Installed) |
| Weight (Pair) | 1320+/-30g(without tubeless valves and rim tape) |
| Rider Weight Limit | 275lbs/125kg |
| Recommended Tire Sizes | 2.2″-2.7″ |
| Compatible Tire Sizes | 700×35-50c |
| Intended Use | Cross Country |
| ERD | 593mm |
| Hub | |
| Front Hub Spacing | 15x110mm |
| Rear Hub Spacing | 12x148mm |
| Bearing | TPI Steel |
| Brake Compatibility | Disc (6-bolt) |
| Freehub Type | 50T Ratchet |
| Freehub Compatibility | Shimano HG / SRAM XD / Shimano MS |
| Spoke | |
| Front Spoke Pattern |
|
| Rear Spoke Pattern |
|
| Spoke Count | 28F/28R |
| Spoke Type | Sapim CX-Ray |
| Nipple Type | Sapim Secure Lock |

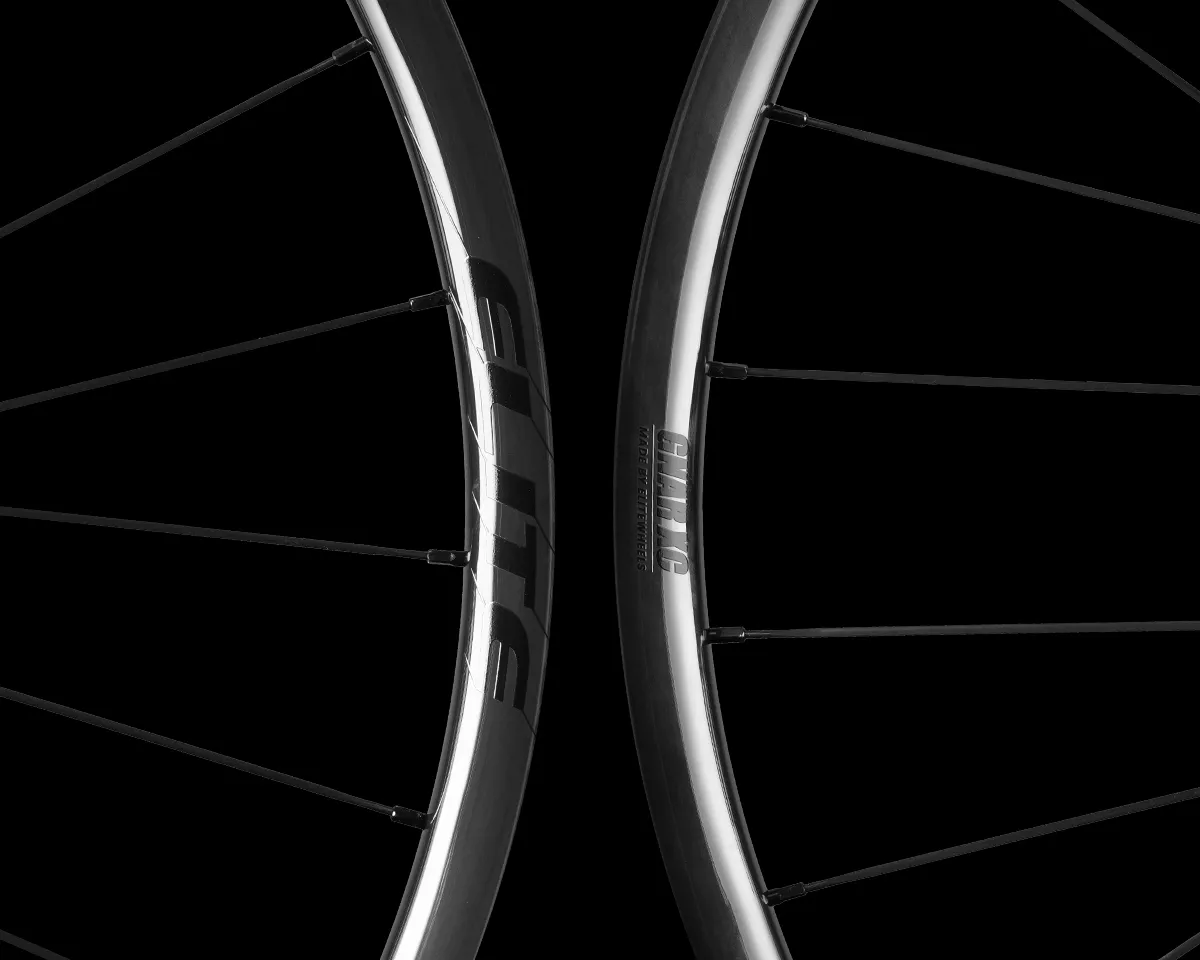

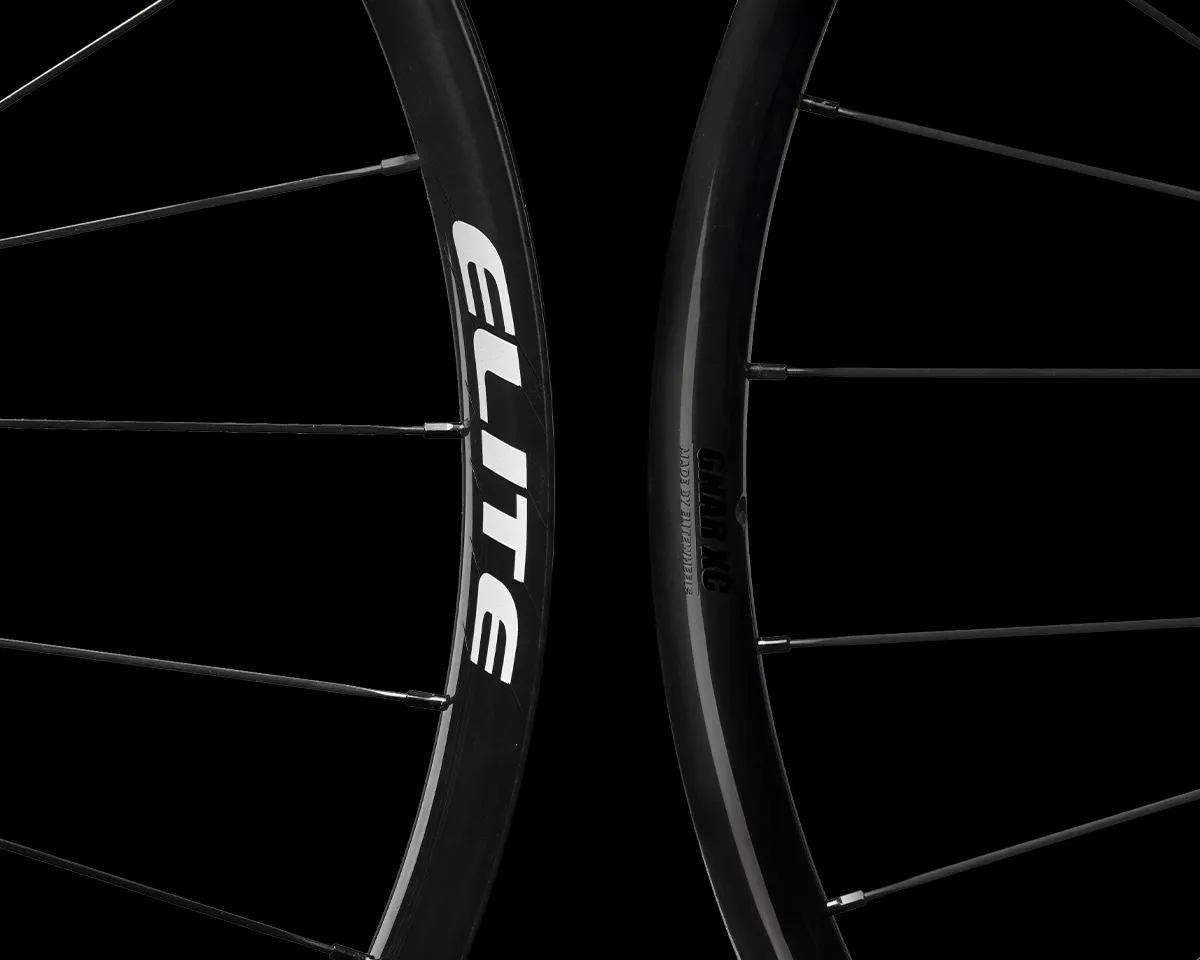

RIM
The Gnar XC rim features an asymmetric design that enhances stress balance and improves lateral stiffness. Designed for modern tubeless setups, the hookless rim allows for effortless installation—requiring only a standard floor pump. The carbon layup is crafted from genuine Toray T700 and T800 fibers, delivering an exceptional strength-to-weight ratio and outstanding impact resistance. Thanks to internal inflatable bladder molding, each rim boasts a smooth, wrinkle-free interior surface and consistent structure. With these innovations, the Gnar XC achieves a total wheelset weight of just 1320g ±30g, offering significant weight savings without compromising on durability or stiffness.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”58140″ img_size=”full” onclick=”link_image” title=”29er Gnar XC Hub” css=”.vc_custom_1749621976786{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1750067025164{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
PERFORMANCE HUB
At the core of the Gnar XC is the Elitewheels Pro hub, precision-machined from high-grade 7075 aluminum alloy. CNC-finished in-house, these hubs offer exceptional strength, tight tolerances, and long-term reliability. The newly upgraded 50T star ratchet system delivers faster engagement, improved power transfer, and enhanced durability while keeping the hub weight at a lightweight 346g (HG). Maintenance is simplified through a tool-free, minimalist design. High-performance TPI steel bearings ensure smooth rolling performance in the toughest conditions.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”58141″ img_size=”full” onclick=”link_image” title=”29er Gnar XC Spokes” css=”.vc_custom_1749622060941{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1769482852805{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
SPOKES
