Drive G45 SS
$1,039.00
In order to cater to the needs of more riders, Elitewheels has released a new gravel wheelset. It is the first Drive wheelset to feature steel spokes. What makes the wheelset special is that it still retains most of the benefits of the carbon spoke version.
– Intended Use: Gravel / Road
– Brake Interface: Center Lock by default
*Availability Status:
1) Silver decals, usually shipped in 7-10 days.;
2) Black decals on backorder, usually shipped in 35-45 days.
Specifications
[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]| Rim | |
| Series | Drive |
| Wheel Size | 700c |
| Tire Compatibility | Clincher/ Tubeless |
| Bead Type | Hooked |

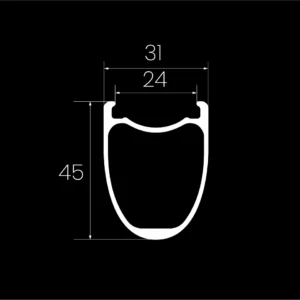

| Rim Depth | 45mm |
| Inner Width | 24mm |
| Outer Width | 31mm |
| Hub | |
| Front Hub Spacing | 12x100mm |
| Rear Hub Spacing | 12x142mm |
| Bearing | Ceramic |
| Brake Compatibility | Disc (Center Lock) |
| Freehub Type | 4 Pawls |
| Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
| Spoke | |
| Front Spoke Pattern | 2X/Radial |
| Rear Spoke Pattern | 2X/2X |
| Spoke Count | 20F/24R |
| Spoke Type | Sapim CX-Ray |
| Nipple Type | Sapim Secure Lock |
| Other | |
| Rim Finish | Glossy Marbling Black |
| Extras | Rim Tape(Installed), Tubeless Valves(Installed) |
| Weight (Pair) | 1370±30g (without tubeless valves and rim tape) |
| Rider Weight Limit | 275lbs/125kg |
| Compatible Tire Sizes | 700 x 28-65C |
| Recommended Tire Sizes | 700 x 28-40C |
| Certification | UCI Approved, CE Certified |
RIMS
Our innovative rim makes use of our unique UNI technology (Learn more about our UNI technology here).
The Drive G45 SS wheelset uses a U-shaped rim which has the aerodynamic advantages of a road wheel. It’s 24mm inner rim width supports 700 x 28-65C tires. This flexibility allows for road riding or gravel riding. The G45 SS is truly a force to be reckoned with regardless of the riding you do. The glossy marble carbon fiber design gives the wheelset a unique and striking appearance.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”21383″ img_size=”full” onclick=”link_image” title=”DRIVE G45 SS Spoke” css=”.vc_custom_1693821292108{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1727080046201{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
SPOKES
Sapim CX-Ray spokes come standard. We take precautions to ensure that spoke windup is minimized so wheels don’t go out of true. After the initial truing, the wheel is sideloaded. This process is repeated again. The wheels are sideloaded a total of 16 times. We see this as an essential quality control standard. As a result, our wheels are guaranteed to stay within 0.2mm of true.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”21381″ img_size=”full” onclick=”link_image” title=”DRIVE G45 SS HUB” css=”.vc_custom_1693821402992{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1747279512123{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
PERFORMANCE HUB
The Drive G45 SS wheelset includes a custom, high-end hub that uses a double-walled waterproof design. The hub flanges have been specifically designed to be simple and practical in form. This makes for easy cleaning of the hub after riding in muddy conditions.
As the hub uses premium ceramic bearings for less rolling resistance. Using these allows for a much longer service life as compared to steel bearings.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”21380″ img_size=”full” onclick=”link_image” title=”DRIVE G45 SS Bearings” css=”.vc_custom_1693821427886{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1694481394965{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
CERAMIC BEARINGS
Both the front and rear hubs of the Drive G45 SS use hybrid ceramic bearings. The efficiency of the ceramic bearings will make it so that you can save extra watts even after years of riding.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_single_image image=”22720″ img_size=”full” css=”.vc_custom_1698287551482{margin-right: 5% !important;margin-left: 5% !important;}”][/vc_column][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/6″][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1698029028762{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner css=”.vc_custom_1698029076216{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/4″ css=”.vc_custom_1698029620783{padding-right: 1% !important;}”][vc_single_image image=”9224″ img_size=”full” onclick=”custom_link”][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1698029630174{padding-right: 1% !important;}”][vc_single_image image=”9216″ img_size=”full” onclick=”custom_link” link=”/product/extra-freehub-road/”][vc_column_text]Extra Road Freehub
$45.00
Extra Spokes
$5.00
Extra Bearings
$10.00 – $30.00
| Freehub | Shimano HG, SRAM XDR, Shimano MSR, Campagnolo N3W |
|---|---|
| Decal | Black, Light Silver |
