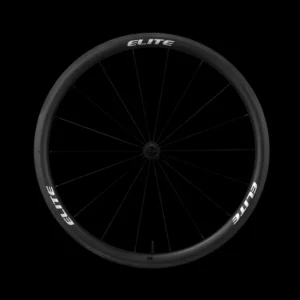

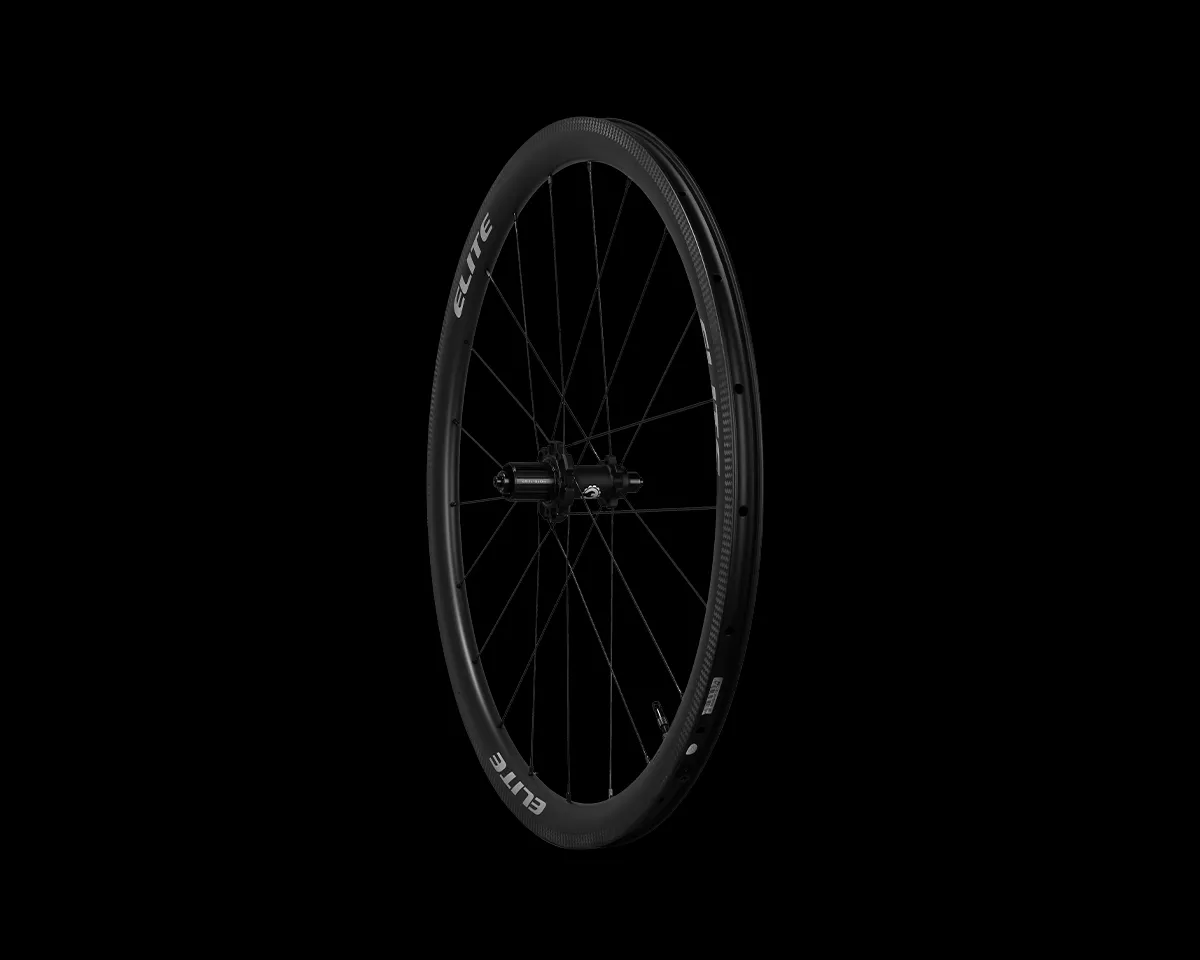

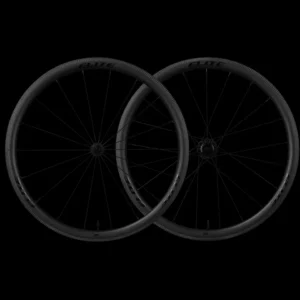

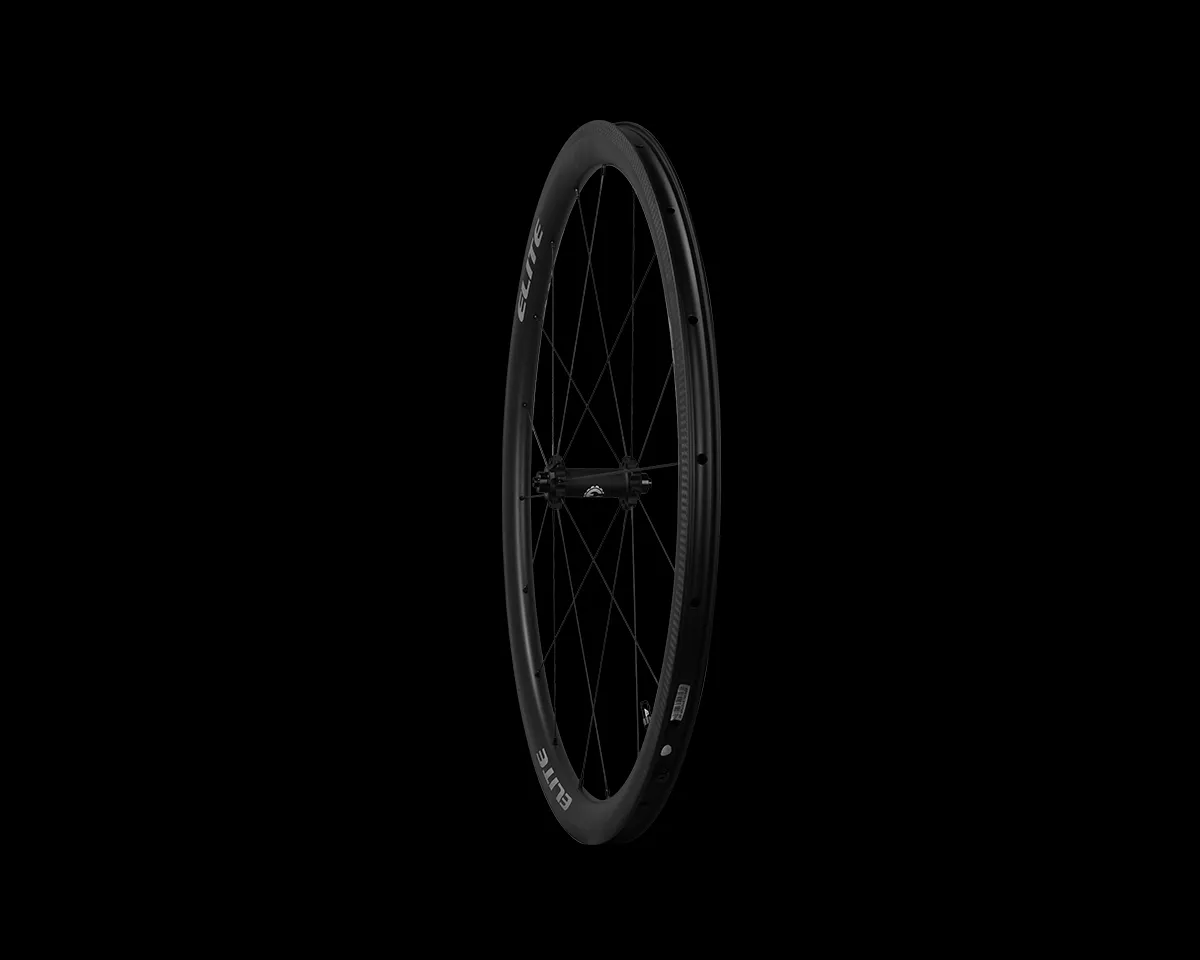

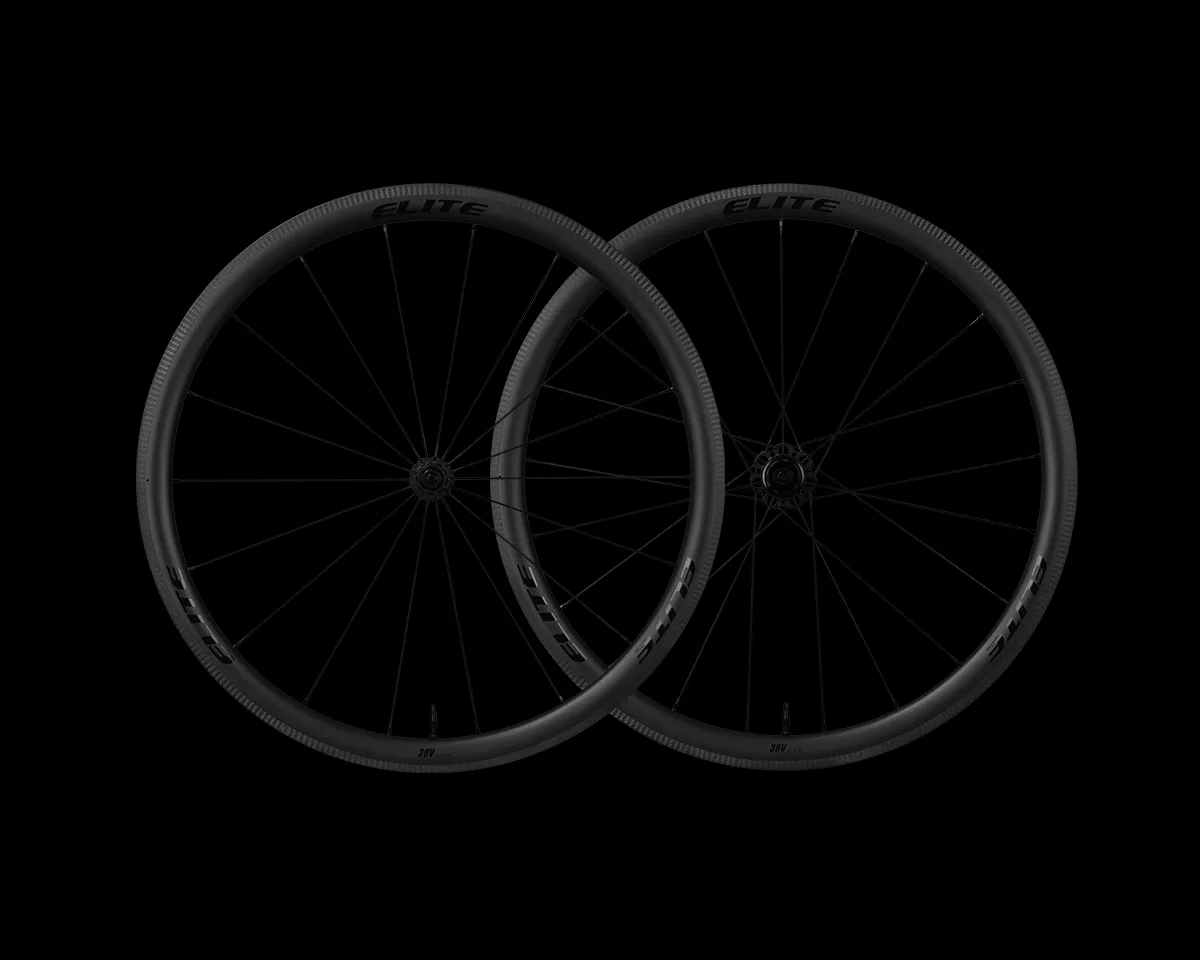

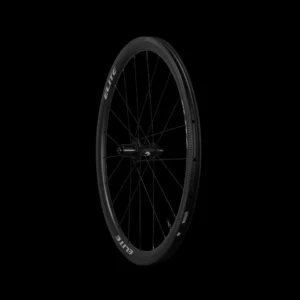

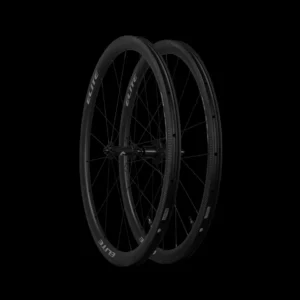

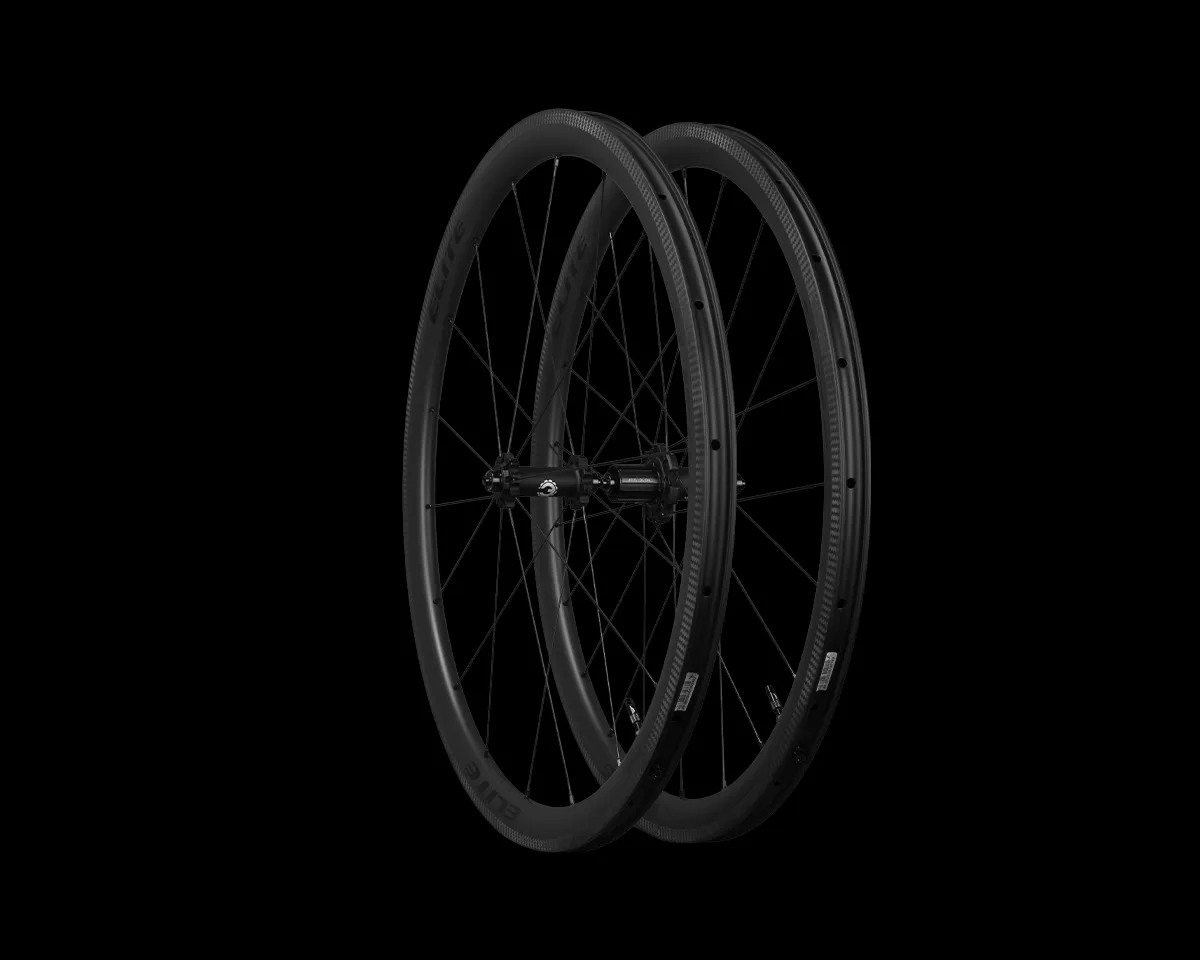

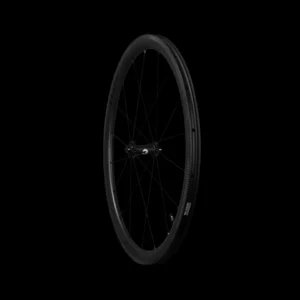

Marvel 38V II Rim Brake

[vc_row css=”.vc_custom_1636434630693{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_column_text css=”.vc_custom_1663125164494{margin-right: 5% !important;margin-left: 5% !important;padding-left: 1em !important;}”]

Specifications

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Series	Marvel II
Wheel Size	700c
Tire Compatibility	Clincher/Tubeless

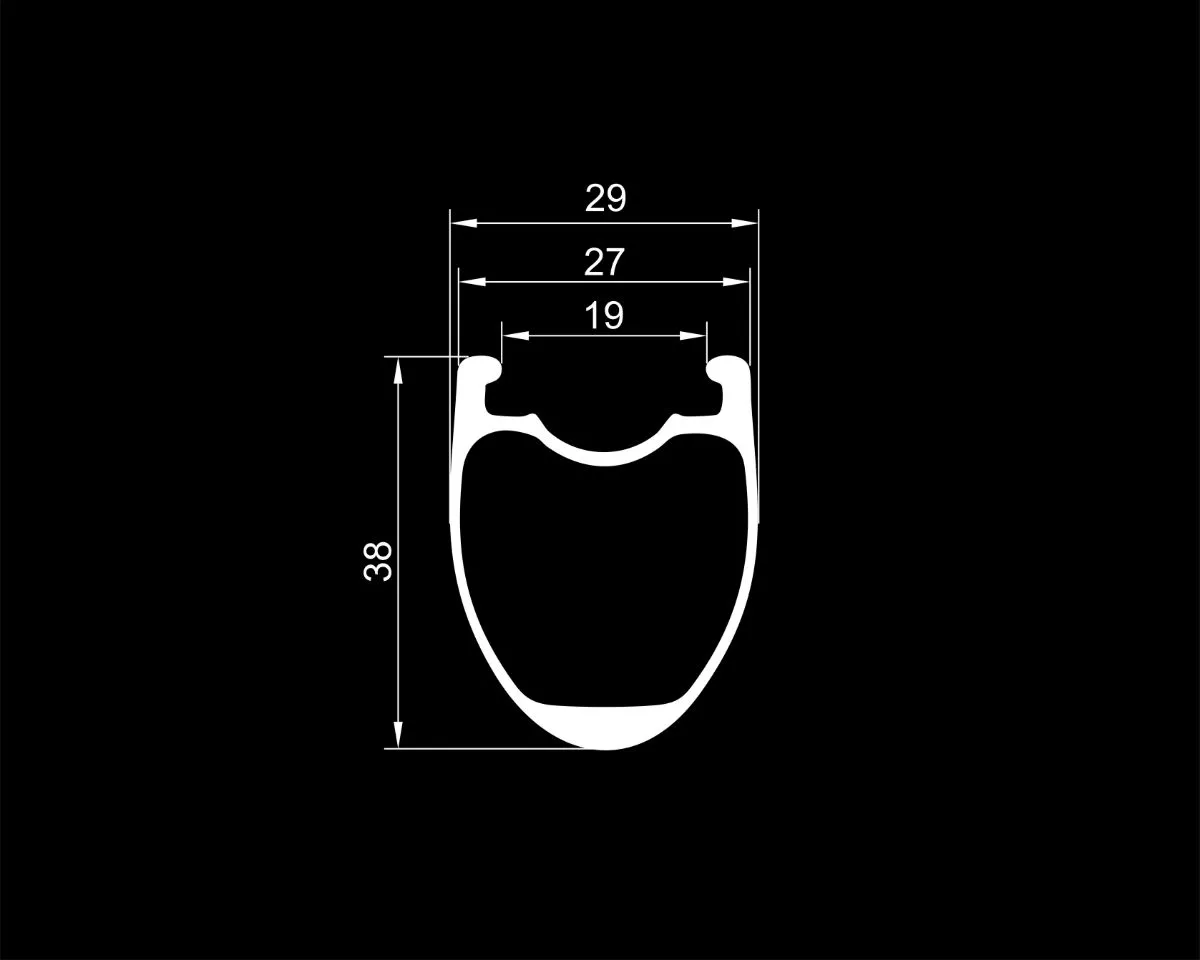

Rim Depth	38mm
Inner Width	19mm
Outer Width	29mm

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Hub
Front Hub Spacing	QR x 100mm
Rear Hub Spacing	QR x 130mm
Bearing	S&S Ceramic
Brake Compatibility	Rim Brake
Freehub Type	4 Pawls
Freehub Compatibility	Shimano / SRAM XDR / Campagnolo

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Spoke
Front Spoke Pattern	Radial
Rear Spoke Pattern	2X/Radial (2:1)
Spoke Count	18F/21R
Spoke Type	Alpina Ultralite Aero
Nipple Type	Sapim Secure Lock

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Rim Finish	UD Matte
Weight(pair)	1410g±30g
Extras	Rim Tape(Installed), Tubeless Valves(Installed), Quick Releases, Brake Pads(2 Sets)
Rider Weight Limit	285lbs/130kg
Compatible Tire Sizes	700 x 23-35C
Recommended Tire Sizes	700 x 23-30C

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_empty_space][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”67505″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1761297041772{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

RIMS

The Marvel II rims from Elitewheels are purpose-built for recreational riders, crafted to meet their distinct requirements. When compared with conventional alloy road rims, Marvel II rims stand out by offering greater strength, higher rigidity, improved aerodynamics, and noticeable weight savings. Because rims are the single most influential component for aerodynamic performance, reducing rim weight decreases rotational mass, resulting in quicker acceleration and a more responsive ride.

These rims employ Elitewheels’ exclusive UNI carbon technology, a precisely optimized mix of T800 and T700 fibers. This advanced layup produces rims that are not only exceptionally stiff and strong but also remarkably lightweight. For instance, the Marvel 38V II features a U/V rim profile, designed to strike the perfect balance between aerodynamic efficiency and stability under crosswind conditions.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”67501″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1761296724976{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]SPOKES

Selecting the right spokes is critical in building a high-performance wheelset. After extensive evaluation, we chose Alpina Ultralite Aero spokes. Compared to the Pillar PA 1423 spokes used in earlier versions, each Alpina Ultralite Areo spoke is significantly lighter, dropping from 6.5g to just 4.2g—a reduction of about 2.3g per spoke. Cold forging further increases their tensile strength, enabling them to endure tensions of more than 300kgf while maintaining excellent durability.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”67503″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1761296737045{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

PERFORMANCE HUB

To unlock the full performance potential of our carbon wheels, the Marvel II series hubs are designed with high flanges, which contribute to increased lateral stiffness and sharper handling. Each hub incorporates 4 pawls, 36 teeth, and a 10° engagement angle. The system carefully balances engagement speed with load distribution, ensuring smooth and efficient power transfer. Thanks to the combination of a small engagement angle and the rigidity of carbon rims, riders experience highly responsive acceleration.

Elitewheels manufactures its hubs in-house using precision Fanuc CNC machines capable of achieving tolerances as fine as 0.02mm. This ultra-precise machining reduces rolling resistance and extends the service life of the bearings, ensuring both efficiency and longevity.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”21147″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1761296796118{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

CERAMIC BEARINGS

The Marvel 38V II is equipped with oversized hybrid ceramic bearings for improved efficiency and durability. The front hub houses two 6803 bearings, while the rear hub includes one 6903 and three 6803 bearings. Larger bearings offer greater load capacity compared to standard sizes, minimizing energy loss and helping riders save valuable watts over long rides.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”67496″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1761296835505{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

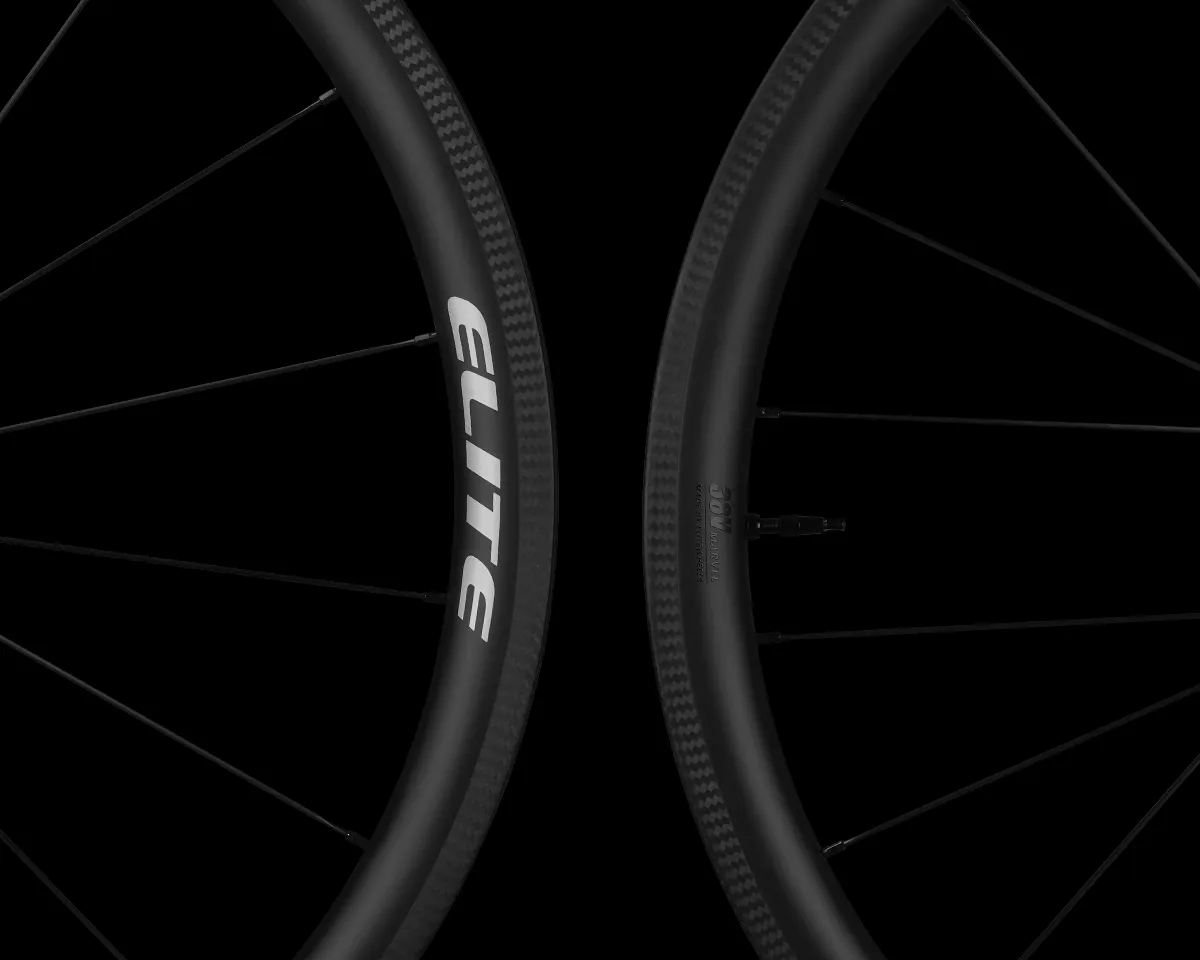

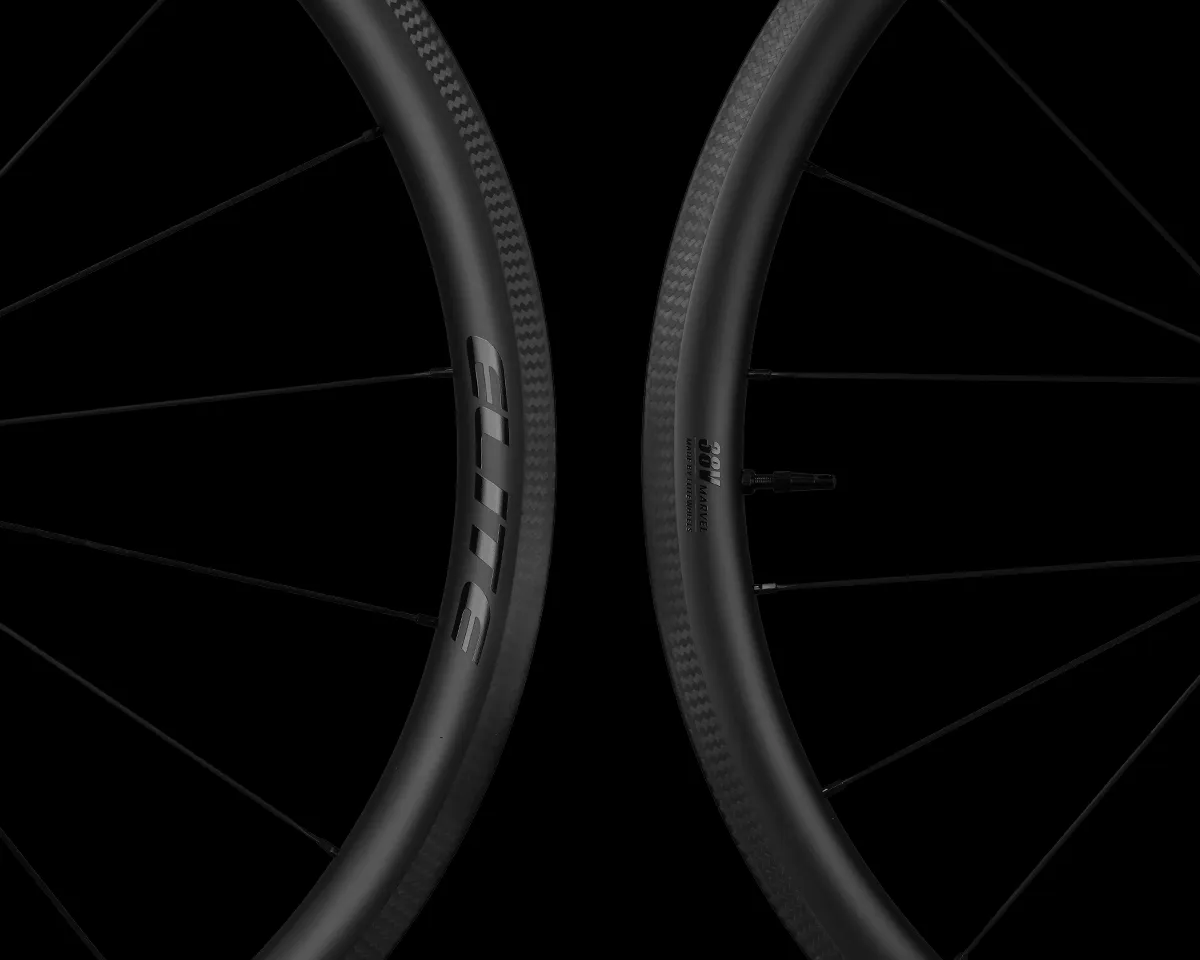

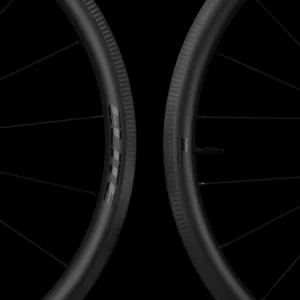

BRAKE SURFACE

The braking surface of the Marvel 38V II combines Elitewheels’ proprietary 270℃ high-temperature resin with Japanese Toray T800 and T700 carbon fibers. This composite material ensures reliable braking performance even during long, demanding descents.

Additionally, the Marvel 38V II incorporates an advanced 3K 45° twill weave carbon surface. Unlike a traditional unidirectional (UD) layup, this cross-woven design provides balanced resistance to both lateral and longitudinal forces, enhancing braking consistency in challenging conditions. The 45° weave also improves heat dissipation, preventing localized overheating and maintaining braking efficiency under high temperatures. Its interlaced structure further enhances durability, resisting pad abrasion and slowing crack propagation, which extends the lifespan of the braking surface.

Combined with a precisely engineered friction texture, this system ensures reliable, fade-free braking ride after ride.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”67502″ img_size=”full”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1761296885665{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

TUBELESS READY

Every Elitewheels wheelset is designed with tubeless compatibility in mind. Each rim comes pre-fitted with tubeless tape and incorporates our proprietary R-angle design, which simplifies tire installation. In addition, bead seat retention ridges make it possible to inflate tubeless tires using just a standard floor pump, eliminating the need for additional equipment and making setup fast and user-friendly.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column width=”1/6″][/vc_column][vc_column width=”2/3″][vc_column_text]

In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
