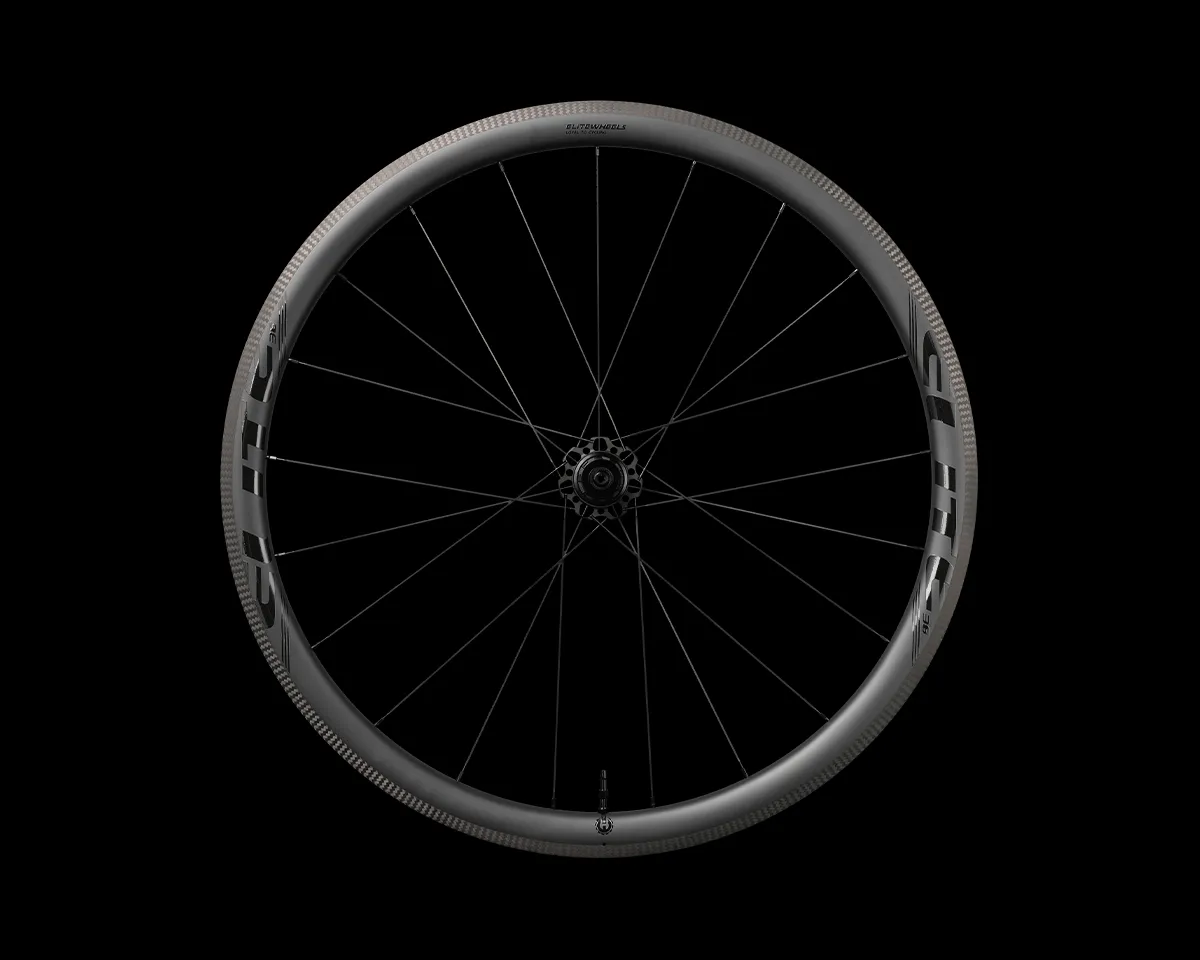

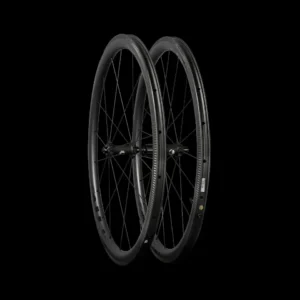

Marvel 38V Rim Brake
$599.00

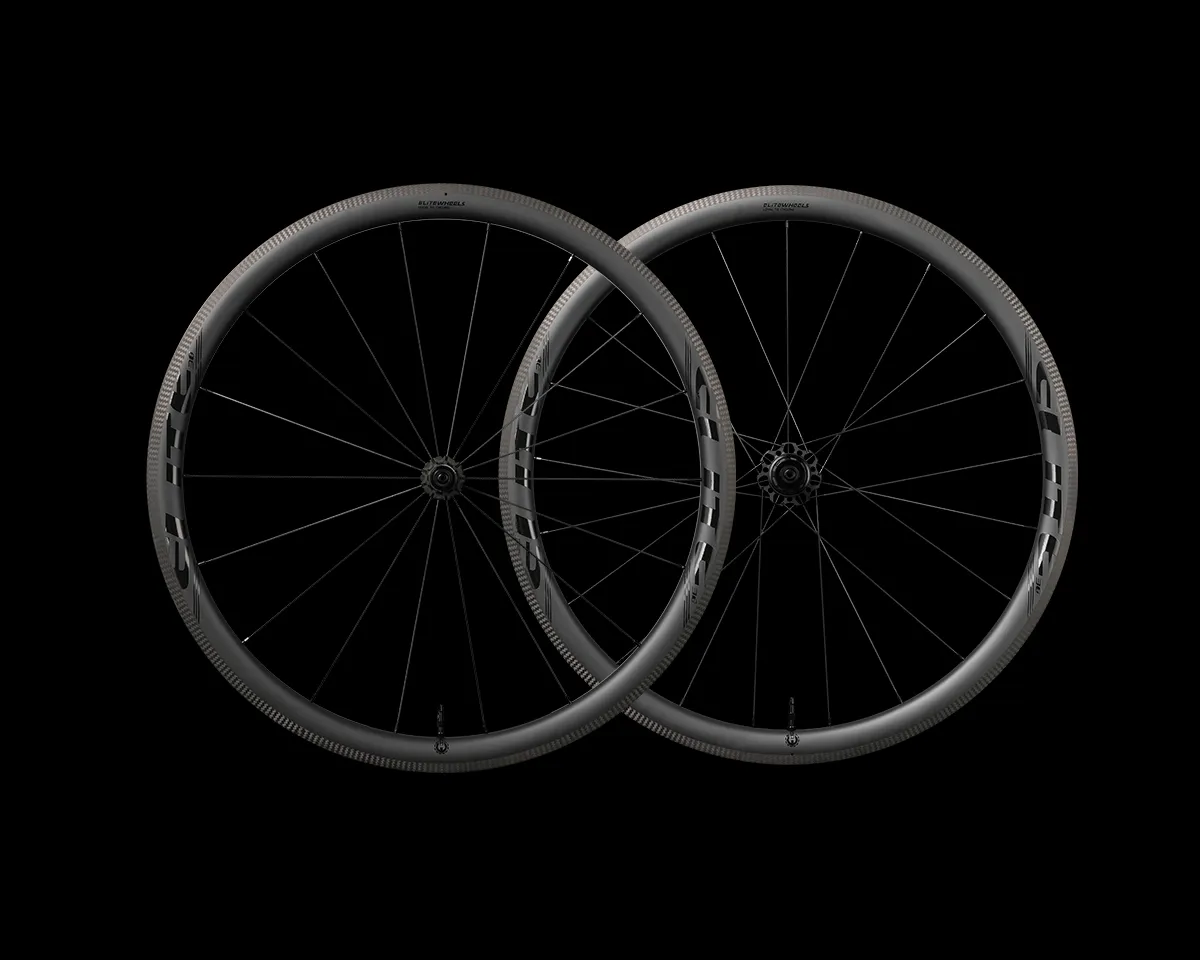

The Marvel 38V wheelset is designed for those who want an all-rounder that performs best in the hills and mountains. While they are our entry-level wheels, don’t let that fool you. They are tried and tested and come with Pillar spokes and high-precision, ceramic bearing hubs. The wheelset has been aerodynamically optimized for 23-30C tires and comes in at only 1573 grams for the pair.
*To ensure that the wheels are compatible with your bike and to prevent any rubbing, the brake pads should be at least 2mm away from the rim’s braking surface on both sides. We recommend checking with your frame and brake caliper manufacturers for the maximum tire clearance before placing your order.
*Availability Status:
1) Black decals, usually shipped in 7-10 days.
2) White decals on backorder, usually shipped in 20-30 days.
Specifications
[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]| Rim | |
| Series | Marvel |
| Wheel Size | 700c |
| Tire Compatibility | Clincher/Tubeless |

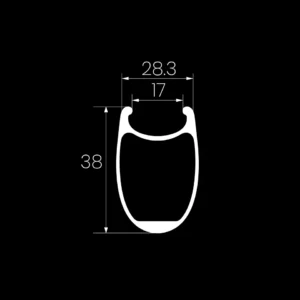

| Rim Depth | 38mm |
| Inner Width | 17mm |
| Outer Width | 28mm |
| Hub | |
| Front Hub Spacing | QR x 100mm |
| Rear Hub Spacing | QR x 130mm |
| Bearing | S&S Ceramic |
| Brake Compatibility | Rim Brake |
| Freehub Type | 4 pawls |
| Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
| Spoke | |
| Front Spoke Pattern | Radial |
| Rear Spoke Pattern | 2X/Radial (2:1) |
| Spoke Count | 18F/21R |
| Spoke Type | Pillar PA 1423 |
| Nipple Type | Sapim Secure Lock |
| Other | |
| Rim Finish | UD |
| Weight(pair) | 1573g±30g (without tubeless valves and rim tape) |
| Extras | Rim Tape(Installed), Tubeless Valves, Quick Releases, Brake Pads(2 Sets) |
| Rider Weight Limit | 285lbs/130kg |
| Compatible Tire Sizes | 700 x 23-35C |
| Recommended Tire Sizes | 700 x 23-30C |
| Max Tire Pressure | 120psi |
| Certification | CE Certified |
RIMS
At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625634280{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”61394″ img_size=”full” onclick=”link_image” title=”Marvel 38V Spoke” css=”.vc_custom_1754012407448{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745306862227{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]SPOKES
Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”61532″ img_size=”full” onclick=”link_image” title=”HUB Marvel 38V” css=”.vc_custom_1754272429675{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1747280225445{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]PERFORMANCE HUB
To get the most out of this carbon wheelset, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”20985″ img_size=”full” onclick=”link_image” title=”Marvel 38V Ceramic bearings” css=”.vc_custom_1693209410986{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1736302850643{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]CERAMIC BEARINGS
The Marvel 38V’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
Read more about ceramic bearings.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”61431″ img_size=”full” onclick=”link_image” title=”Marvel 38V BRAKE SURFACE” css=”.vc_custom_1754018379655{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1754017019738{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
BRAKE SURFACE
The Marvel 38V uses a blend of 270 ℃, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents.
The 45° angled weave promotes efficient heat dissipation, effectively limiting localized overheating and maintaining stable braking efficiency at high temperatures. Additionally, the interlaced fiber pattern enhances wear resistance, reducing abrasion from brake pads while inhibiting crack propagation for longer-lasting performance.
Paired with a precisely textured friction surface, this system contributes to reliable, fade-free braking, ride after ride.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”61432″ img_size=”full” onclick=”link_image” title=”Rim type” css=”.vc_custom_1754018395982{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1692781725293{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
TUBELESS IN MIND
All of our wheels are tubeless ready with tubeless rim tape pre-installed. Each rim features our unique tubeless R-angle design, allowing for easier mounting. To make mounting tubeless tires even easier, rims are designed with bead seat retention ridges making inflation possible with just a floor pump.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/6″][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1698029028762{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner css=”.vc_custom_1698029076216{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/4″ css=”.vc_custom_1698029620783{padding-right: 1% !important;}”][vc_single_image image=”9224″ img_size=”full” onclick=”custom_link”][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1698031580044{padding-right: 1% !important;}”][vc_single_image image=”9216″ img_size=”full” onclick=”custom_link” link=”/product/extra-freehub-road/”][vc_column_text]Extra Road Freehub
$45.00
Extra Spokes
$5.00
Schwalbe Pro One Tubeless
$50.00
| Freehub | Shimano 11/12S & SRAM 11S, SRAM XDR 12S, Campagnolo 10/11/12S |
|---|---|
| Decal | Black, White |
