Specifications
[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]| Rim | |
| Series | Marvel |
| Wheel Size | 700c |
| Tire Compatibility | Clincher/Tubeless |

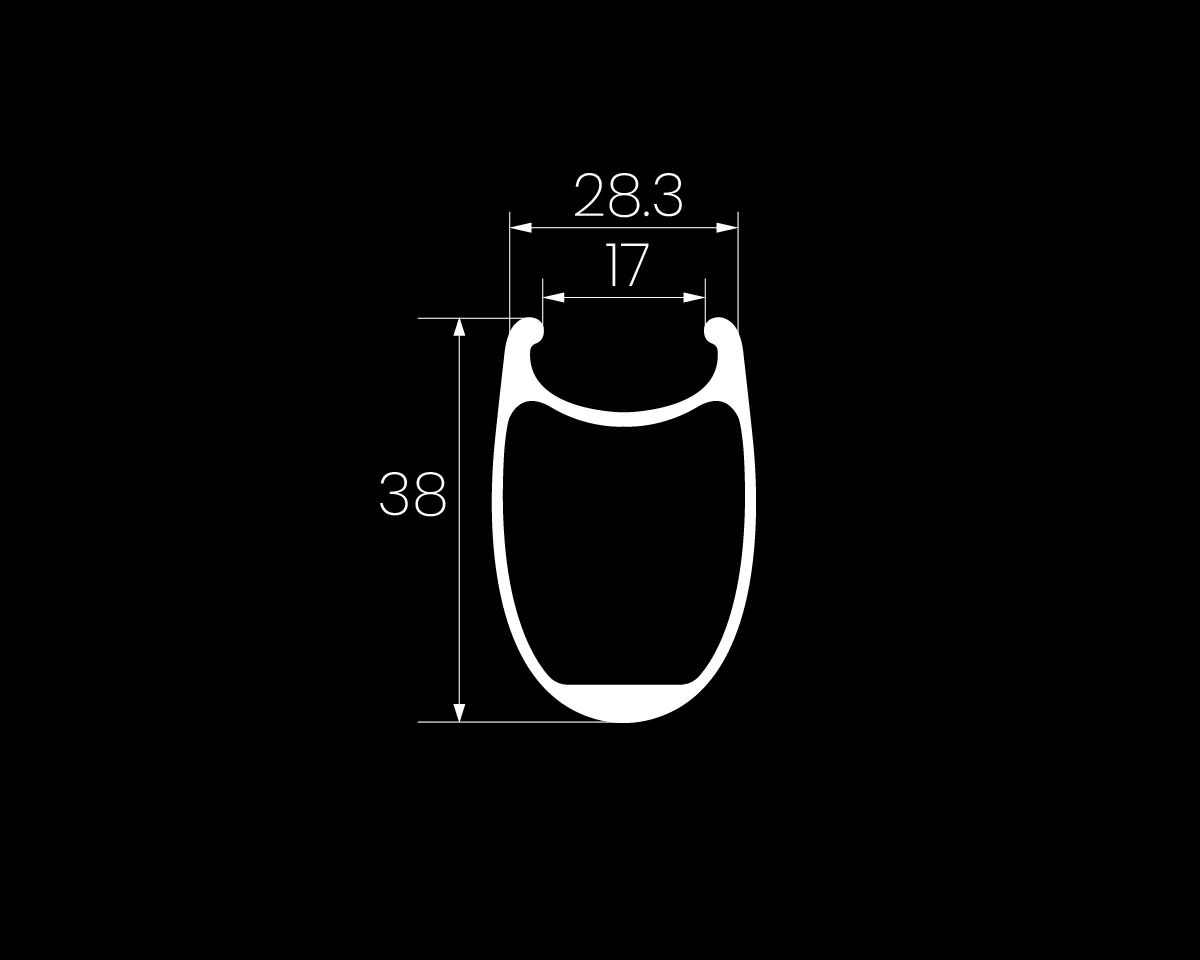

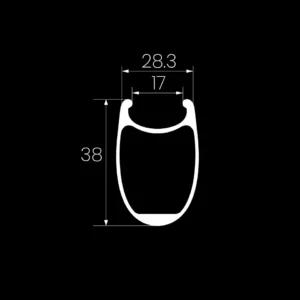

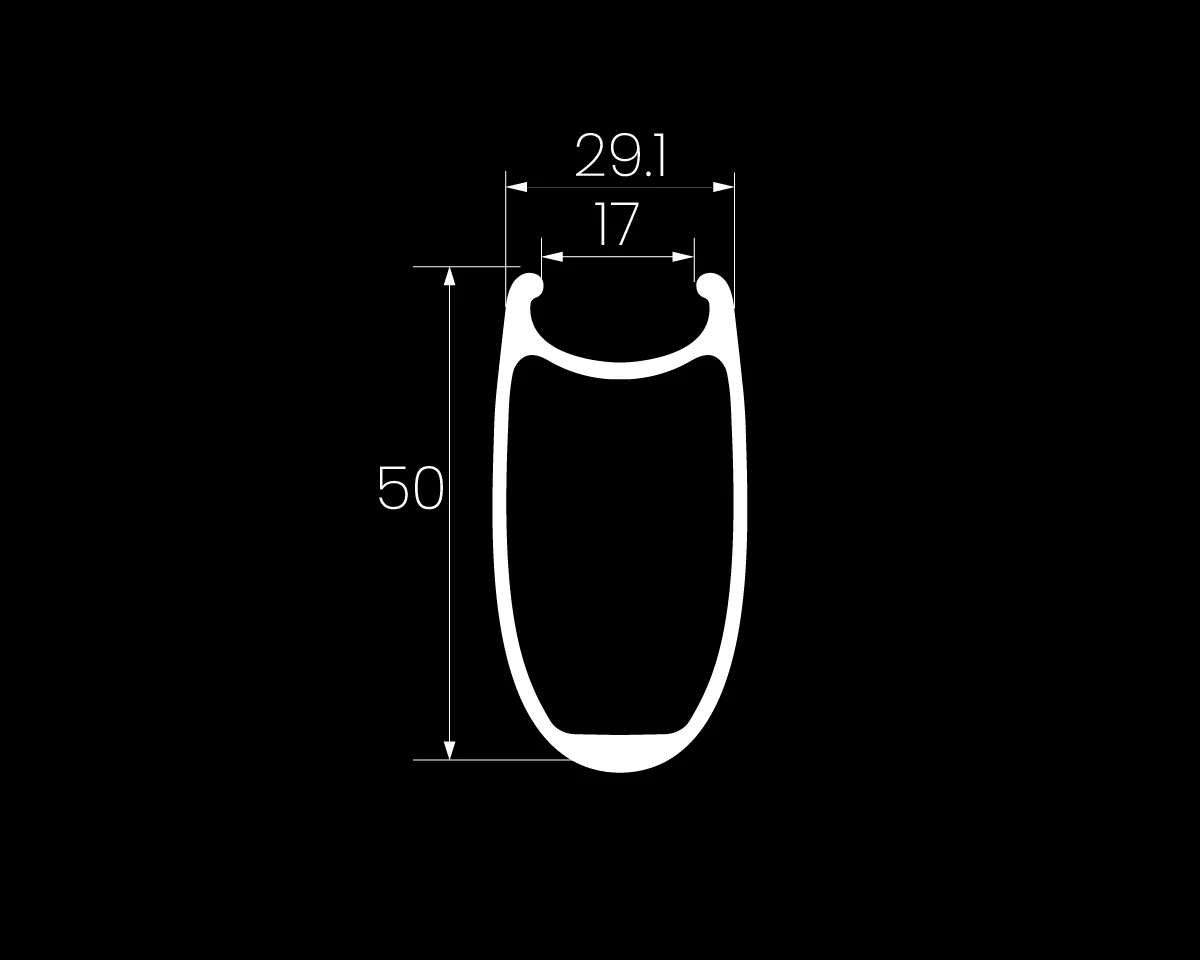

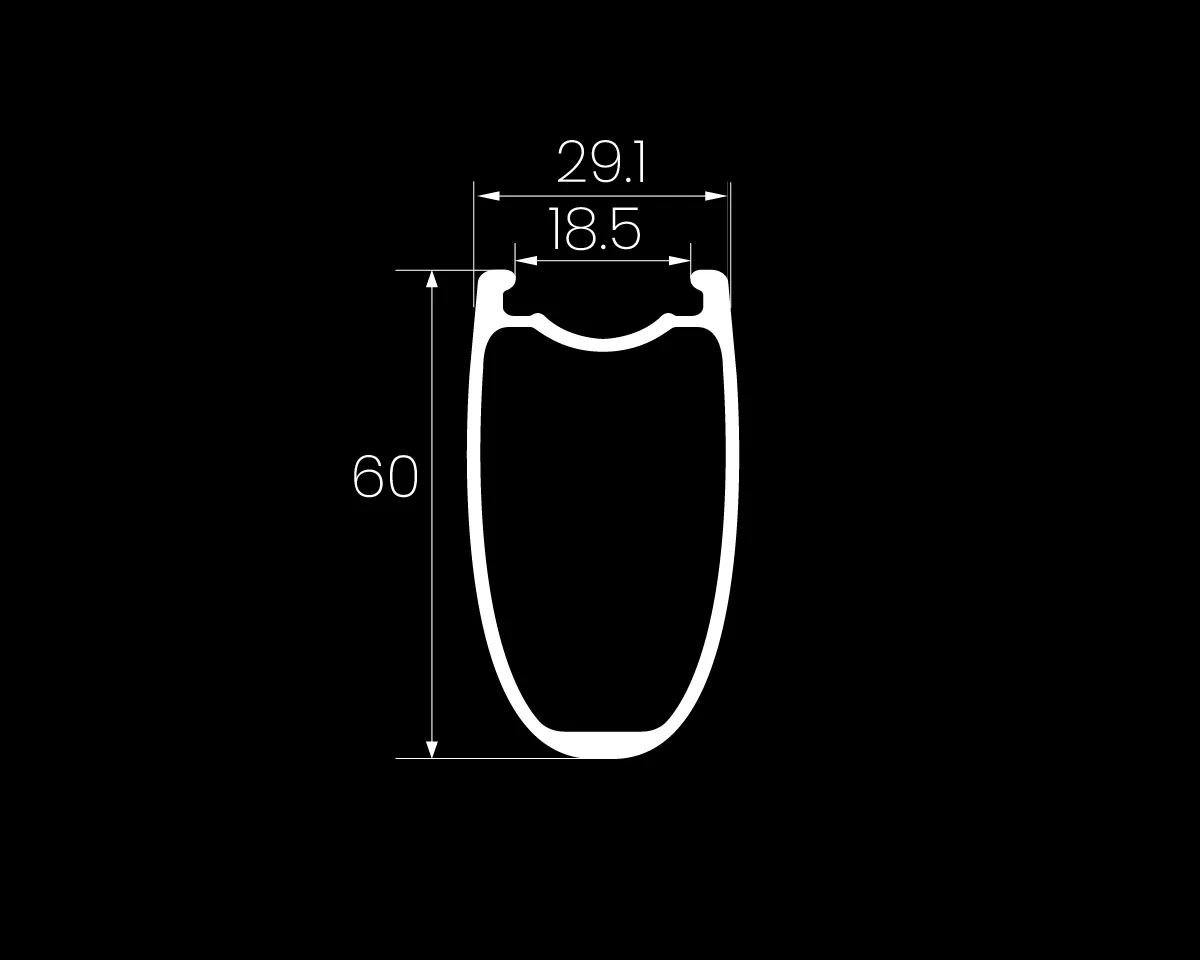

| Rim Depth | Refer to Depth Options |
| Inner Width | Refer to FAQ |
| Outer Width | 28mm |
| Hub | |
| Front Hub Spacing | 12x100mm / QR x 100mm |
| Rear Hub Spacing | 12x142mm / QR x 135mm |
| Bearing | S&S Ceramic |
| Brake Compatibility | Disc (Center Lock) |
| Freehub Type | 4 Pawls |
| Freehub Compatibility | Shimano / SRAM XDR / Campagnolo |
| Spoke | |
| Front Spoke Pattern | 2X/Radial (2:1) |
| Rear Spoke Pattern | 2X/1X (2:1) |
| Spoke Count | 21F/24R |
| Spoke Type | Pillar PA 1423 |
| Nipple Type | Sapim Secure Lock |
| Other | |
| Rim Finish | UD |
| Weight(pair) | Refer to FAQ (without tubeless valves and rim tape) |
| Extras | Rim Tape(Installed), Tubeless Valves(Installed) |
| Rider Weight Limit | 285lbs/130kg |
| Compatible Tire Sizes | 700 x 23-35C |
| Recommended Tire Sizes | 700 x 23-30C |
| Max Tire Pressure | 120psi |

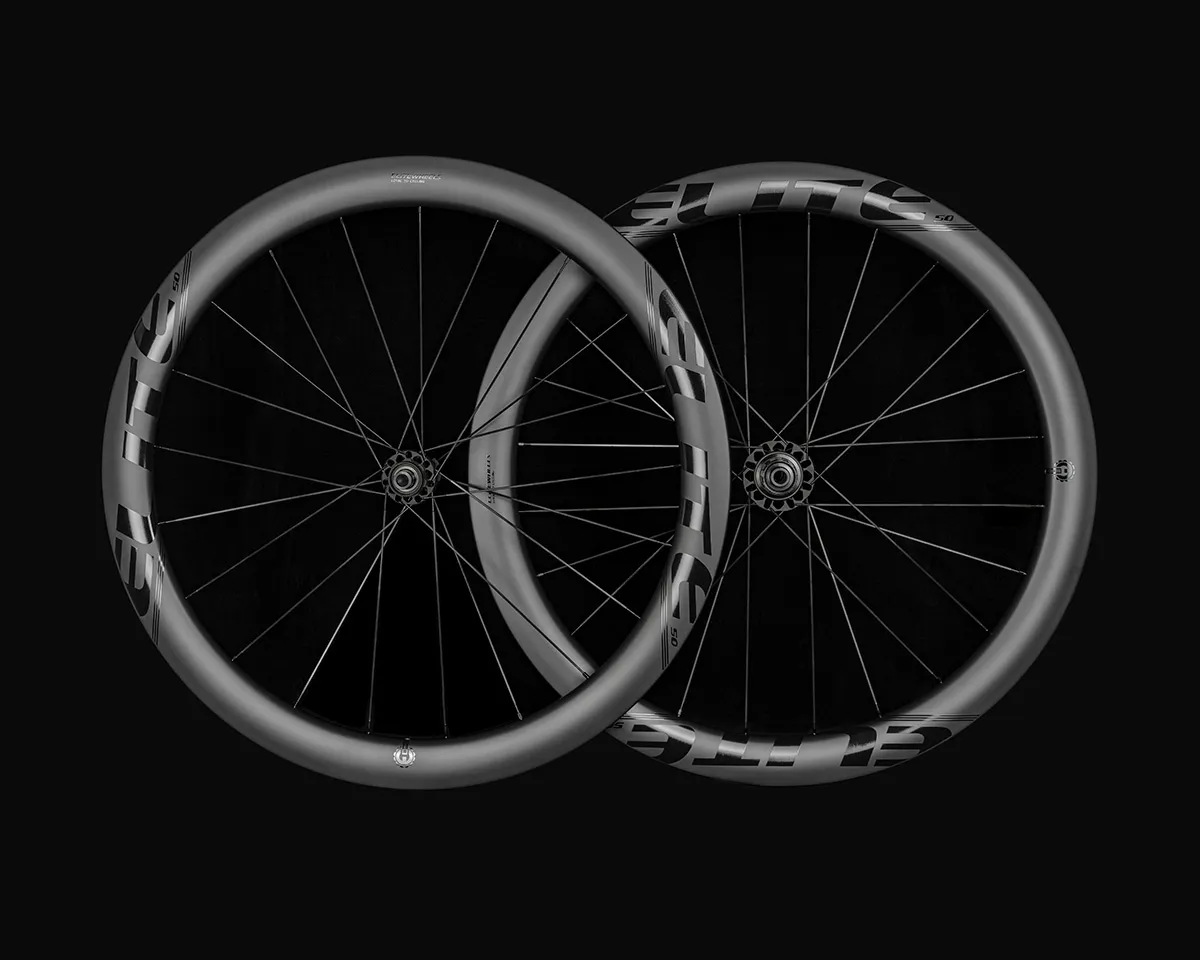

RIMS
At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”8556″ img_size=”full” onclick=”link_image” title=”Marvel Disc Spokes” css=”.vc_custom_1652431554903{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745307544657{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]SPOKES
Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”8555″ img_size=”full” onclick=”link_image” title=”Marvel Disc Hub” css=”.vc_custom_1652431624390{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745725732942{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

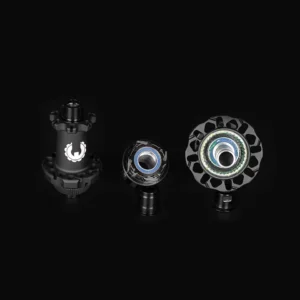

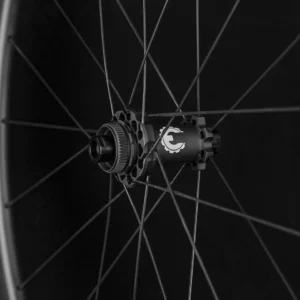

PERFORMANCE HUB
Marvel Disc wheels feature high flange hubs which offer greater lateral stiffness, improving stability. Both the front and rear wheel hubs feature ceramic bearings with an extremely low coefficient of friction, saving you precious watts. The front hub uses 6803 ceramic bearings and the rear hub uses three 6803 bearings and one 6903 bearing. The larger the bearing, the better the rigidity.
Marvel Disc wheels can also be upgraded to DT Swiss hubs upon request.
Discover the Hub Sound Here[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”21147″ img_size=”full” onclick=”link_image” title=”Marvel Disc Hub” css=”.vc_custom_1693292801852{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1695352704414{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
CERAMIC BEARINGS
The Marvel Marvel DB Mixed Depth’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
Read more about ceramic bearings.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”8557″ img_size=”full” onclick=”link_image” title=”Marvel Disc Rim type” css=”.vc_custom_1652431586592{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1693292830201{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]
TUBELESS IN MIND
All of our wheels are tubeless ready with tubeless rim tape pre-installed. Each rim features our unique tubeless R-angle design, allowing for easier mounting. To make mounting tubeless tires even easier, rims are designed with bead seat retention ridges making inflation possible with just a floor pump.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
